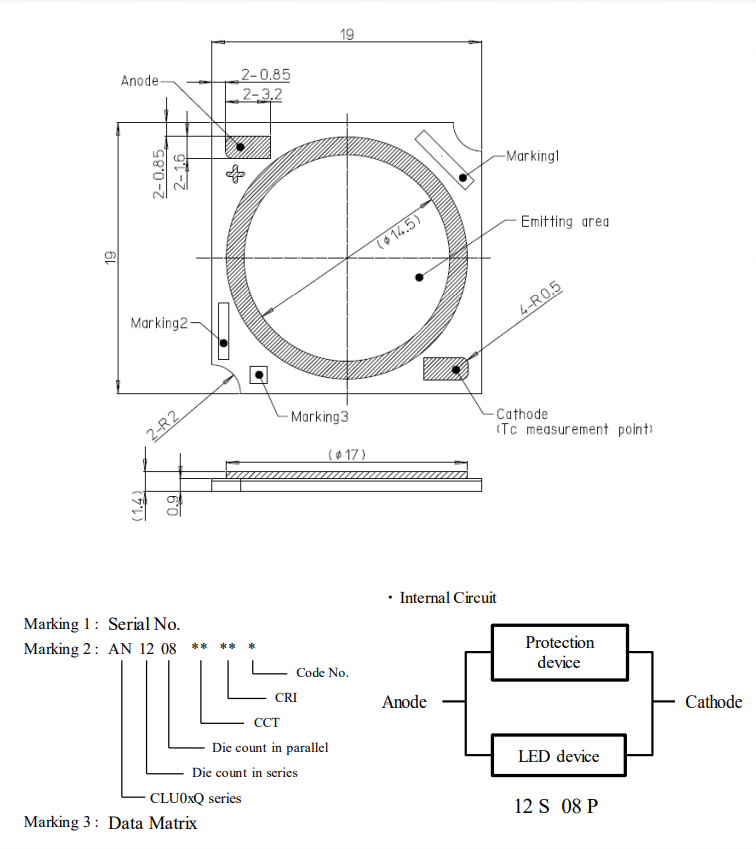

・Mechanical Dimensions : 19 × 19 × 1.4 (mm)

・Package Structure : Aluminum Base Chip on Board

・Reference Assembly : M3 screw, Connector

・CRI (Ra) : 90 Min.

・Nominal CCT : 2,700K, 3,000K, 3,500K, 4,000K, 5,700K

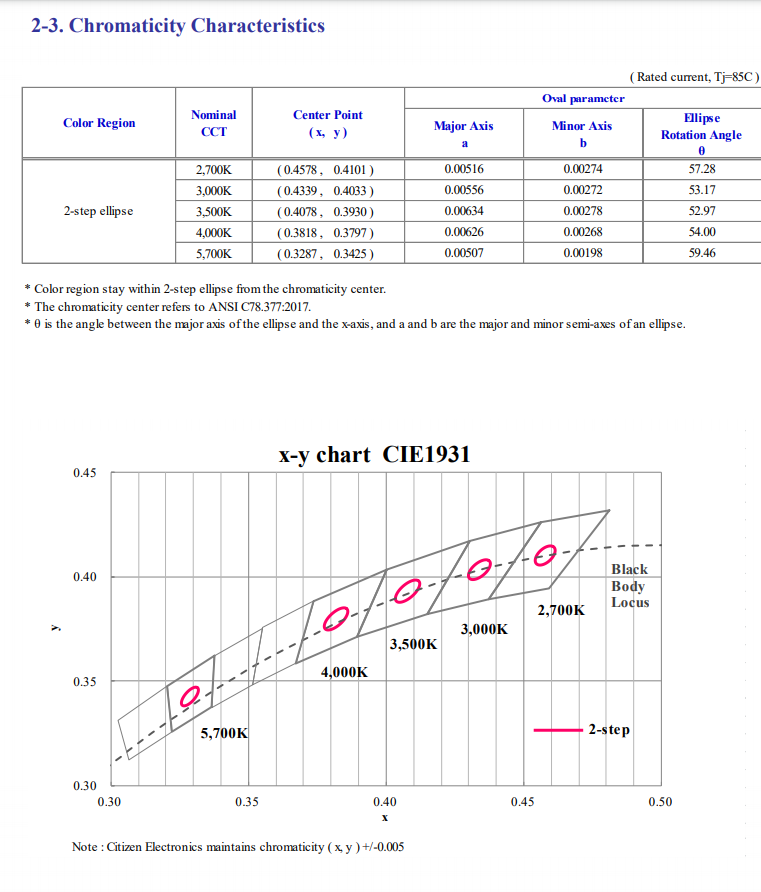

・Chromaticity Range : 2-step Ellipse, the center refers to ANSI C78.377:2017.

・Thermal Resistance : 0.48C/W

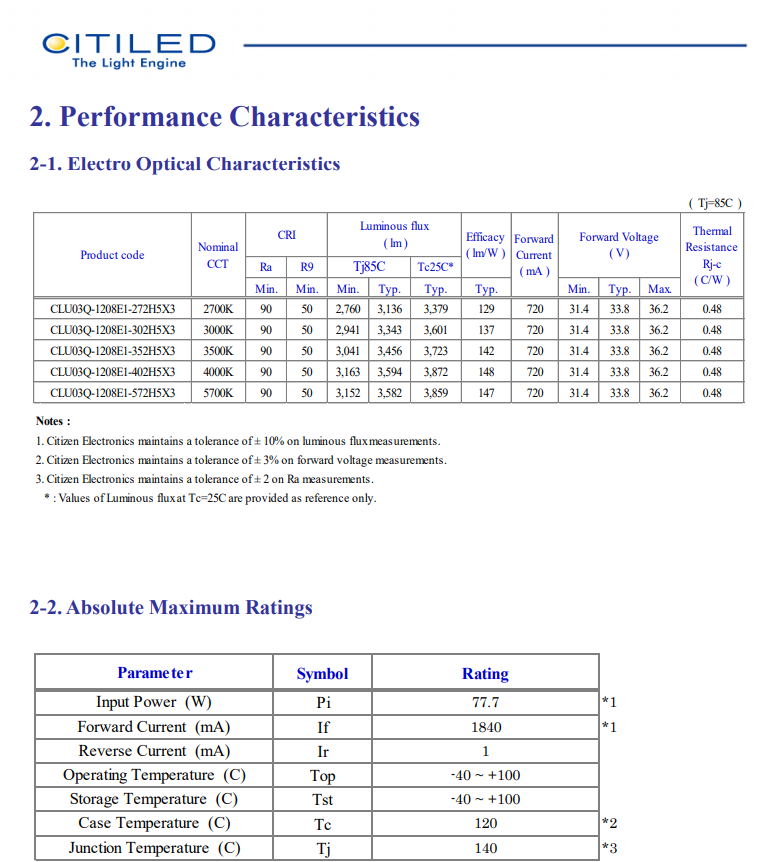

・Maximum drive current : 1840mA

・UL recognized component (E358566)

・RoHS compliant

・Better die arrangement for optics

・Wide range of luminous flux and high efficacy

・Improved lumen density compared with previous version
