• Available in no CRI minimum white, 70-, 80- and 90-CRI white,

royal blue & photo red

• Broadcast color option at 5700 K

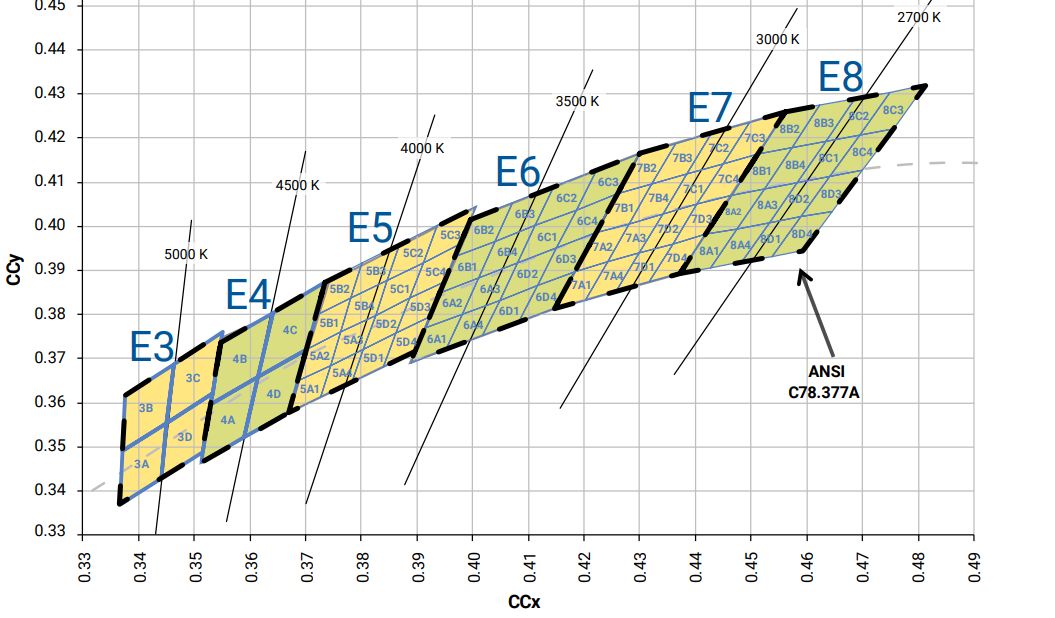

• ANSI-compatible chromaticity bins

• 3‑step and 5‑step options

• White binned at 85 °C, royal blue & photo red binned at 25 °C

• Maximum drive current: white, royal blue: 2000 mA, photo red:

1500 mA

• Low thermal resistance: white: 1.1 °C/W, royal blue: 0.9 °C/W,

photo red: 1.2 °C/W

• Wide viewing angle: 123°–130°

• Unlimited floor life at ≤ 30 ºC/85% RH

• Reflow solderable - JEDEC J‑STD‑020C

• Electrically neutral thermal path

• RoHS and REACH compliant

• UL® recognized component (E349212）
