FEATURES

• Available in white, 70-CRI white, 80-CRI

white and 90-CRI white

• Broadcast color option at 5700 K

provides maximum performance for TV

events that require extremely high TLCI

• ANSI-compatible chromaticity bins

• Binned at 85 °C

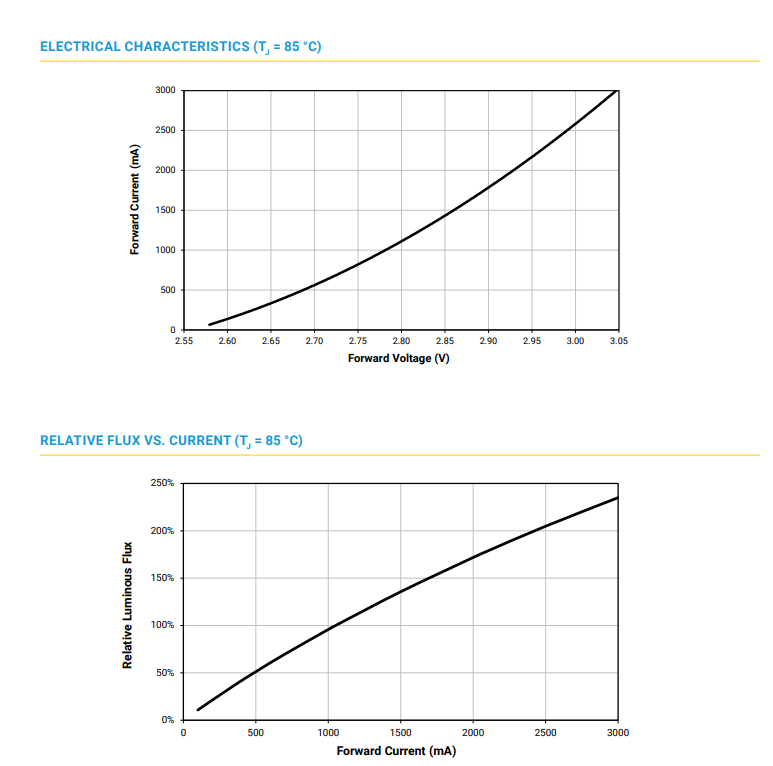

• Maximum drive current: 3000 mA

• Low thermal resistance: 0.6 °C/W

• Wide viewing angle: 125°

• Unlimited floor life at ≤ 30 ºC/85% RH

• Reflow solderable - JEDEC J‑STD‑020C

• Electrically neutral thermal path

• RoHS and REACH compliant

• UL® recognized component (E349212)
