科锐 XLamp® XHP50 LED

科锐 XLamp® XHP50 LED 采用科锐突破性的 SC5 技术™平台供电，属于科锐极大功率(XHP) 级 LED。这些 LED 大大改变了流明密度和可靠性，使系统成本大幅降低 40%。在最大电流下，XHP50 LED 输出的光亮度是业内最亮单片 LED（XLamp XM-L2 LED）的两倍。具有相似的每瓦流明，且未增加包装尺寸。与之前的 LED 技术相比，XHP50 LED 能在更高的工作温度中工作，且使用寿命更长。因而大幅降低了系统的散热、机械和光学成本。

特点

• 最大驱动电流：3000mA (6V), 1500mA (12V)

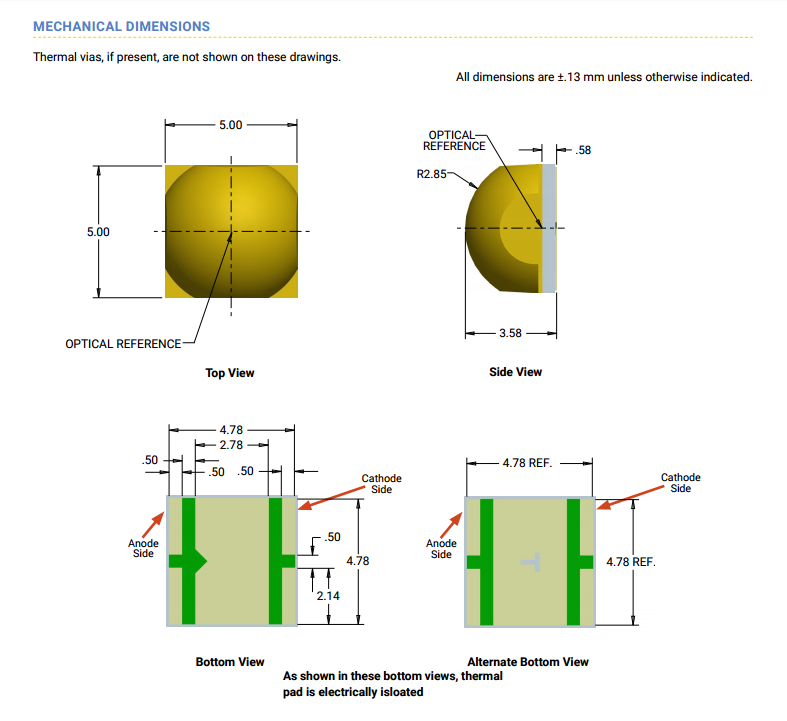

• 5mm x 5mm
• 最大光输出：高达 2546lm @ 19W
• 低热阻：1.2°C/W
• 白色
• 在 85º 时分档
• 宽角度：120º
• 无限车间寿命(在≤ 30ºC/85% 相对湿度情况下)
• 可回流焊——符合 JEDEC J-STD-020C
• 电中性热路径

Cree, Inc.:

XHP50A-01-0000-0D0HG40E7 XHP50A-01-0000-0D0HG430G XHP50A-00-0000-0D0HH40CB XHP50A-00-0000- 0D0HH235G XHP50A-00-0000-0D00J40DV XHP50A-00-0000-0D0UG20E2 XHP50A-00-0000-0D0BJ20E2 XHP50A- 00-0000-0D00J40E1 XHP50A-00-0000-0D0BJ20E3 XHP50A-01-0000-0D0BH20E7 XHP50A-00-0000-0D0HG40E4 XHP50A-00-0000-0D0HH20DV XHP50A-01-0000-0D0UF40E5 XHP50A-01-0000-0D0UF227H XHP50A-00-0000- 0D0UG20E1 XHP50A-00-0000-0D00J20E4 XHP50A-01-0000-0D0UF227G XHP50A-01-0000-0D00H40E3 XHP50A- 00-0000-0D0UE427G XHP50A-01-0000-0D0BJ245E XHP50A-01-0000-0D0HH20E3 XHP50A-01-0000-0D0BH40E6 XHP50A-00-0000-0D0BH445E XHP50A-01-0000-0D0HH40CB XHP50A-01-0000-0D0UG20DV XHP50A-00-0000- 0D0BJ240E XHP50A-00-0000-0D0BJ40E1 XHP50A-01-0000-0D0BJ20E4 XHP50A-00-0000-0D0UF440G XHP50A- 01-0000-0D00J20E1 XHP50A-00-0000-0D0HG445G XHP50A-01-0000-0D0HG427H XHP50A-01-0000-0D0UF250G XHP50A-00-0000-0D0UF240H XHP50A-00-0000-0D0BH40E3 XHP50A-01-0000-0D0HG435H XHP50A-00-0000- 0D0HG430H XHP50A-00-0000-0D0HG430G XHP50A-01-0000-0D0BH450E XHP50A-01-0000-0D0HH250G XHP50A-01-0000-0D0HH40E3 XHP50A-01-0000-0D0HG40E5 XHP50A-01-0000-0D0BJ20E1 XHP50A-00-0000- 0D0UF40CB XHP50A-01-0000-0D0UF40E2 XHP50A-00-0000-0D0BH20E7 XHP50A-00-0000-0D0UF20E5 XHP50A- 00-0000-0D0BH230E XHP50A-01-0000-0D0HG445G XHP50A-01-0000-0D0UG20E2 XHP50A-01-0000-0D0HH20E5 XHP50A-01-0000-0D00J40CB XHP50A-00-0000-0D0HG230H XHP50A-00-0000-0D0BJ20DV XHP50A-01-0000- 0D0UF440G XHP50A-01-0000-0D0UF40E3 XHP50A-00-0000-0D0UF40E1 XHP50A-01-0000-0D00J20DV XHP50A- 01-0000-0D0HG430H XHP50A-00-0000-0D0BH40E6 XHP50A-01-0000-0D0BH230E XHP50A-01-0000-0D0BH40E3 XHP50A-01-0000-0D0BJ40DT XHP50A-00-0000-0D0HH245G XHP50A-00-0000-0D0HG427H XHP50A-00-0000- 0D0UF450G XHP50A-01-0000-0D0UE427H XHP50A-00-0000-0D00J40DT XHP50A-01-0000-0D00J20E3 XHP50A- 01-0000-0D0UF240G XHP50A-00-0000-0D0UF227H XHP50A-00-0000-0D00J40E2 XHP50A-00-0000-0D0HH235H XHP50A-00-0000-0D0BJ20E5 XHP50A-01-0000-0D0HH40E1 XHP50A-01-0000-0D00J20CB XHP50A-00-0000- 0D0BJ40DV XHP50A-00-0000-0D0UG20DT XHP50A-00-0000-0D0UF20E3 XHP50A-00-0000-0D0HH20E4 XHP50A- 01-0000-0D0HH20E1 XHP50A-01-0000-0D0BH435E XHP50A-01-0000-0D0UG20CB XHP50A-01-0000-0D00H40E5 XHP50A-01-0000-0D0HH20CB XHP50A-00-0000-0D0UF40E4 XHP50A-01-0000-0D0UE430G XHP50A-00-0000- 0D0HG440G XHP50A-01-0000-0D0UF20E4 XHP50A-00-0000-0D00J20DV XHP50A-00-0000-0D0UF40E3 XHP50A- 01-0000-0D0HH235G XHP50A-00-0000-0D0BG40E7 XHP50A-00-0000-0D0UG20CB XHP50A-01-0000-0D0BJ20DT XHP50A-00-0000-0D0BJ40CB XHP50A-01-0000-0D0BJ250E XHP50A-01-0000-0D0BG40E7 XHP50A-01-0000- 0D0UF40DT XHP50A-00-0000-0D0UF230G
