规格书下载: https://www.bridgelux.com/products/vero-series

    Vero Series is our flagship LED array product with Bridgelux technology that gives customers a competitive advantage. Vero simplifies luminaire design and manufacturing by integrating a holder into the array, along with a port for a wire harness, so soldering is not required.

Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents. The platform delivers high lumen density for exceptional beam control and precision lighting, along with 2 and 3 SDCM color control standard for clean, uniform illumination.
        For fast and solderless connections to Vero LED arrays, refer to Vero wire harness accessories listed at the end of the page.
Features

Onboard connector port

Market-leading efficacy, up to 185 lm/W typical

1,000 to 21,000 typical lumen packages

36V across a variety of form factors

Expansive color portfolio: 65-97 CRI, Class A and application-specific color points

Thermally isolated solder pads

Select SKUs meet DLC Premium (Outdoor-Mid Output) requirements under certain system conditions

Benefits

Solderless connectivity enables plug & play installation

True color reproduction

Pure, bright and consistent white light

Industry standard electrical compatibility

General lighting to high-end retail & luxury applications

Facilitates soldering

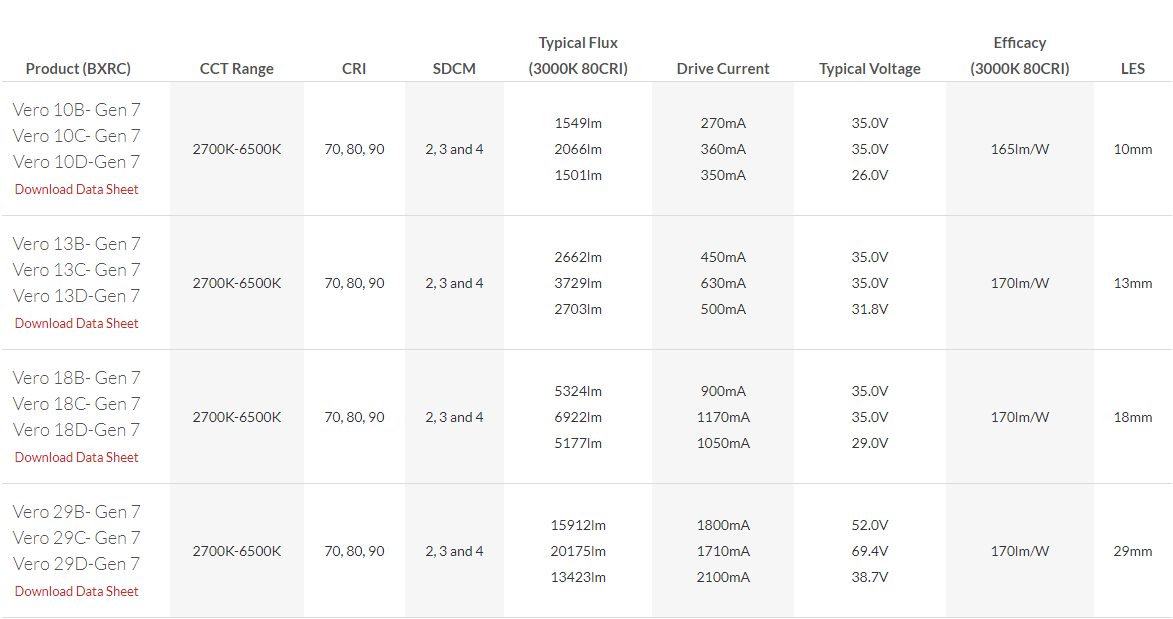

Product Specifications
