PRODUCT DESCRIPTION

The XLamp® CHA LED family delivers an

industry-leading combination of lumen

density and efficacy in LES sizes as small

as 3.3  mm. CHA family LEDs deliver 50%

higher lumen density than the existing

XLamp CMU family LEDs for significant

improvements in beam angle and intensity.

The XLamp CHA family LEDs are also

compatible with the available ecosystem

of holders and optics designed for

high-intensity COBs.

XLamp CHA LEDs are optimized for

premium indoor lighting applications,

including track, spot and downlight, as well

as outdoor lighting.

FEATURES

• 3.3-mm optical source

• Available in 80-, 90‑, and 95‑minimum

CRI options

• EasyWhite® 2- and 3-step binning

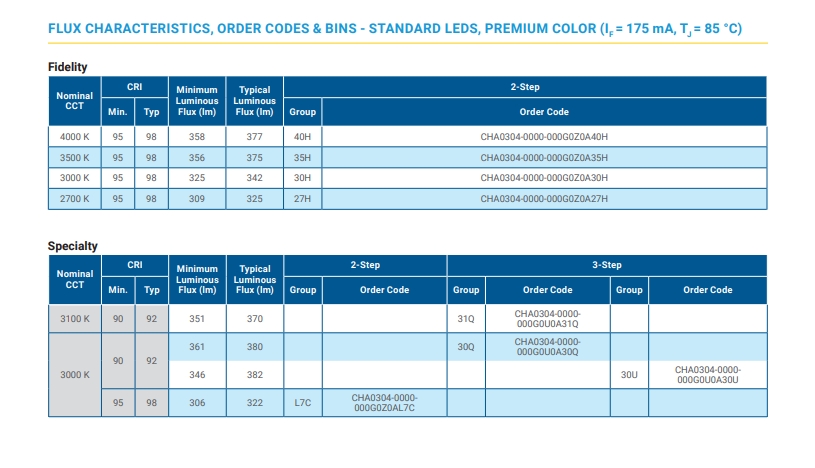

• Premium Color 2- and 3-step binning

• Forward voltage option: 21-V class

• 85 °C binning and characterization

• Maximum drive current: 300 mA

• 114° viewing angle, uniform

chromaticity profile

• Top-side solder connections

• RoHS and REACH compliant

• UL® recognized component (E349212)

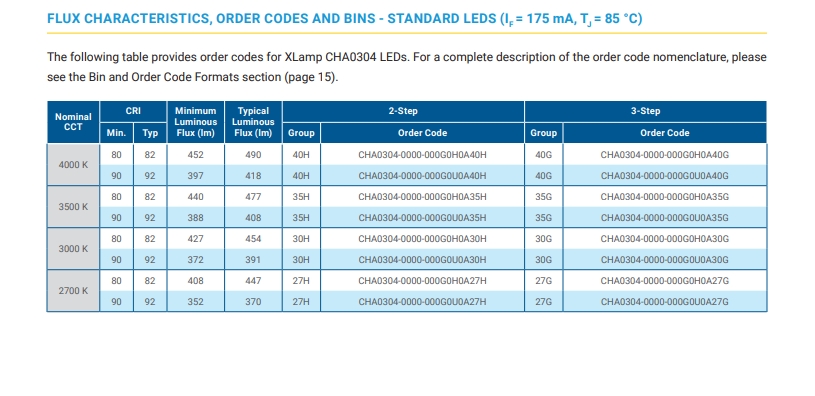

CHA0304-0000-000G0H0A27G CHA0304-0000-000G0H0A27H CHA0304-0000-000G0H0A30G CHA0304-0000-

000G0H0A30H CHA0304-0000-000G0H0A35G CHA0304-0000-000G0H0A35H CHA0304-0000-000G0H0A40G

CHA0304-0000-000G0H0A40H CHA0304-0000-000G0U0A27G CHA0304-0000-000G0U0A27H CHA0304-0000-

000G0U0A30G CHA0304-0000-000G0U0A30H CHA0304-0000-000G0U0A30Q CHA0304-0000-000G0U0A30U

CHA0304-0000-000G0U0A31Q CHA0304-0000-000G0U0A35G CHA0304-0000-000G0U0A35H CHA0304-0000-

000G0U0A40G CHA0304-0000-000G0U0A40H CHA0304-0000-000G0Z0A27H CHA0304-0000-000G0Z0A30H

CHA0304-0000-000G0Z0A35H CHA0304-0000-000G0Z0A40H CHA0304-0000-000G0Z0AL7C CHA0304-R160-

000G0H0A27G CHA0304-R160-000G0H0A30G CHA0304-R160-000G0H0A35G CHA0304-R160-000G0H0A40G

CHA0304-R160-000G0U0A27G CHA0304-R160-000G0U0A30G CHA0304-R160-000G0U0A35G CHA0304-R160-

000G0U0A40G
