规格书下载: https://look.ams-osram.com/m/8006cc90644a3e8/original/CH-DELSS1-22.pdf

Description

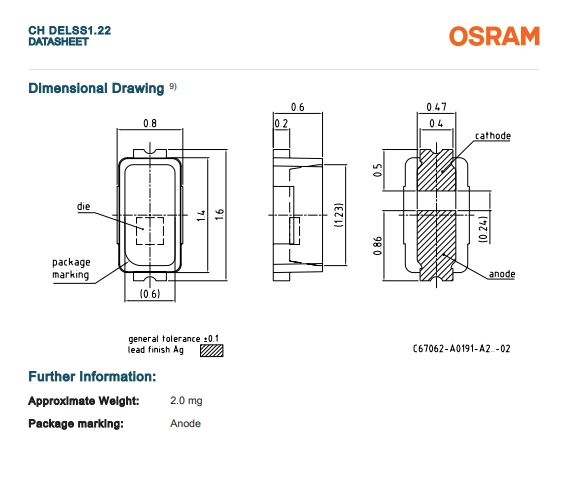

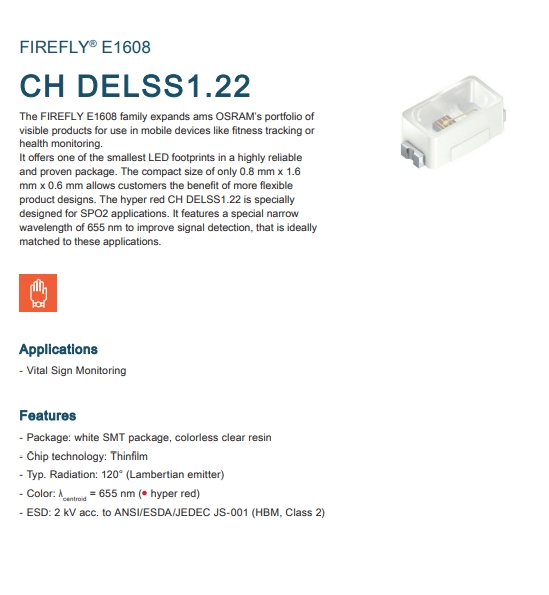

The FIREFLY E1608 family expands ams OSRAM's portfolio of visible products for use in mobile devices like fitness tracking or health monitoring. It offers one of the smallest LED footprints in a highly reliable and proven package. The compact size of only 0.8 mm x 1.6 mm x 0.6 mm allows customers the benefit of more flexible product designs. The hyper red CH DELSS1.22 is specially designed for SPO2 applications. It features a special narrow wavelength of 655 nm to improve signal detection, that is ideally matched to these applications.

Applications- Vital Sign MonitoringFeatures- Package: white SMT package, colorless clear resin- Chip technology: Thinfilm- Typ. Radiation: 120° (Lambertian emitter)- Color: λcentroid = 655 nm (● hyper red)- ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
