规格书下载: https://look.ams-osram.com/m/67f545d03fe2a65/original/KW-HHL532-TK.pdf

DescriptionThe OSLON Black Flat S product family meets both, excellent brightness in combination with outstanding luminance. The SMT device is very stable, durable and can be used with standard SMT processes. A new solder pad layout allows for high reliability and supperior thermal management. The compact chips deliver high light output. The Device is Pin-compatible with LUW HWQP.

DetailsParametersColor of emissionWhiteElectrical power3.2 WHighBrightnessΦV395 lmIV128 cdΦE1260 mWIE408 mW/srBeam angle∢120 °Operating temperatureTop min.-40 °CTop max.135 °CDimensionl3.75 mmw3.75 mmh0.49 mmApplication fieldsAutomotive & mobilityStatic forward lighting
Maximum RatingsParameter Symbol ValuesOperating Temperature 2) Top min.max.-40 °C135 °CStorage Temperature Tstg min.max.-40 °C135 °CJunction Temperature Tj max. 150 °CJunction Temperature for short time applications* Tj max. 175 °CForward currentTS = 25 °CIF min.max.50 mA1500 mASurge currentt ≤ 10 µs; D = 0.005 ; TS = 25 °CIFS max. 2500 mAESD withstand voltageacc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)VESD 8 kVReverse current 3) IR max. 200 mAz

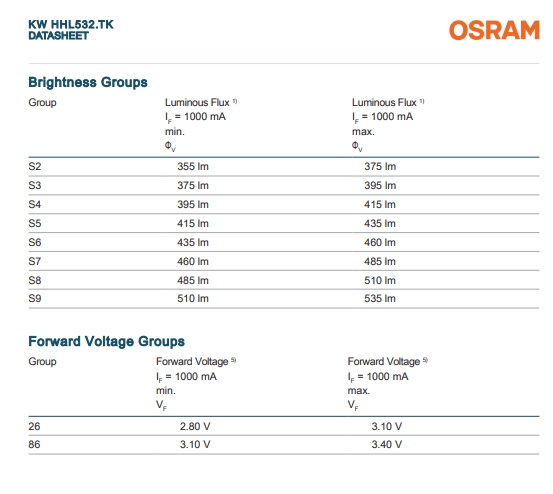

CharacteristicsIF = 1000 mA; TS = 25 °CParameter Symbol ValuesChromaticity Coordinate 4) CxCytyp.typ.0.3250.345Viewing angle at 50% IV 2φ typ. 120 °Forward Voltage 5)IF = 1000 mAVF min.typ.max.2.80 V3.15 V3.40 VReverse voltage (ESD device) VR ESD min. 45 VReverse voltage 3)IR = 20 mAVR max. 1.2 VReal thermal resistance junction/solderpoint 6) RthJS real typ.max.3.2 K / W3.8 K / WElectrical thermal resistance junction/solderpoint 6)with efficiency ηe = 38 %RthJS elec. typ.max.2.0 K / W2.4 K / W
