This SMD LED features an IPx8 water

resistant rating in a PLCC package. These

high performance tricolor SMT

LEDs are designed to work in a wide

range of applications. A wide viewing angle

and high brightness make

these LEDs suitable for outdoor and

full color video signage applications.

The encapsulation resin contains UV

inhibitors to minimize the effects of

long-term exposure to direct

sunlight, resulting in stable light

output over the life of the LED. This PLCC

package has an increased

package height to ease in the

manufacturing process.

FEATURES

• Size (mm): 1.7 x 1.6 x 1.6

• Dominant Wavelength

Red (619 - 624nm)

Green (520 - 535nm)

Blue (465 - 477.5nm)

• Luminous Intensity (mcd)

Red (403 - 635)

Green (900 - 1260)

Blue (160 - 280)

• Water-Resistant (IPx8)*

• Moisture Sensitivity Level: 5a

• Lead-Free

• RoHS Compliant

APPLICATIONS

• Outdoor Full-Color Video Screen

• Decorative Lighting

• Amusement

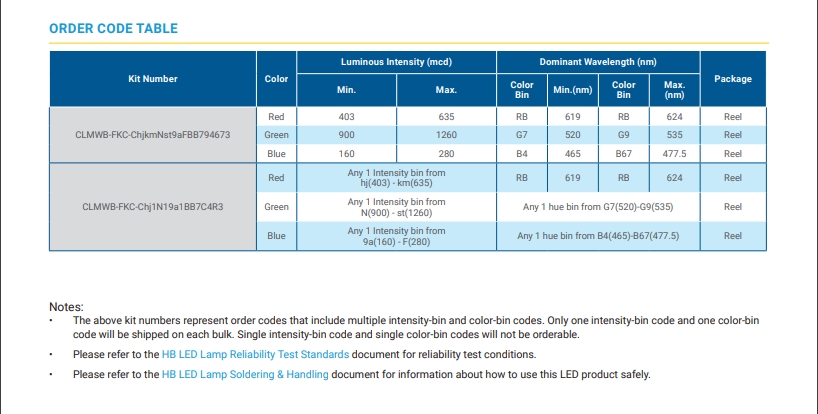

CLMWB-FKC-Chj1N19a1BB7C4R3

CLMWB-FKC-ChjkmNst9aFBB794673
