This SMD LED features an IPx8 water

resistant rating in a PLCC6 package. These

high performance tricolor SMT

LEDs are designed to work in a wide

range of applications.

The encapsulation resin contains UV

inhibitors to minimize the effects of

long-term exposure to direct

sunlight, resulting in stable light

output over the life of the LED. This PLCC6

package has an increased

package height to ease in the

manufacturing process.

FEATURES

• Size (mm): 9.4 x 4.2 x 4.0

• Dominant Wavelength

Red (619 - 624nm)

Green (520 - 540nm)

Blue (460 - 480nm)

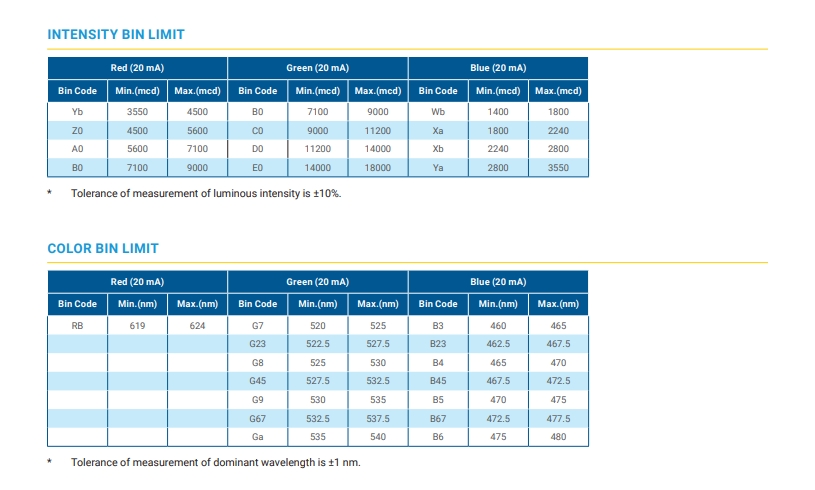

• Luminous Intensity (mcd)

Red (3550 - 9000)

Green (7100 - 18000)

Blue (1400 - 3550)

• Water-Resistant (IPx8)*

• Moisture Sensitivity Level: 5a

• Lead-Free

• RoHS Compliant

APPLICATIONS

• Transportation and road way signs

• Channel Letter

• Amusement

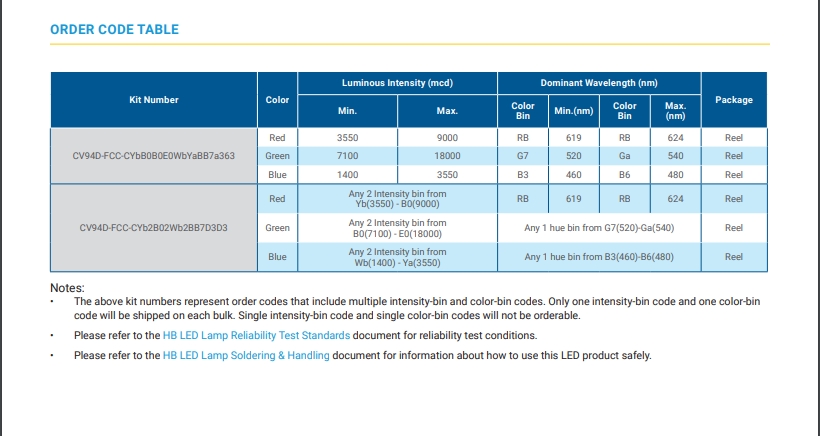

CV94D-FCC-CYB2B02WB2BB7D3D3

CV94D-FCC-CYBB0B0E0WBYABB7A363
