These SMD LEDs are packaged in an

industry standard PLCC8 package. These

high performance 4 color SMT LEDs

are designed to work in a wide range of

applications. A wide viewing angle and

high brightness make these LEDs suitable

for signage applications.

FEATURES

• Size (mm): 3.5x 3.5 x 2.8

• Dominant Wavelength/CCT

Red (619 - 624nm)

Green (520 - 535nm)

Blue (460 - 475nm)

White (2700K/3000K/4000K/5000K/5700K)

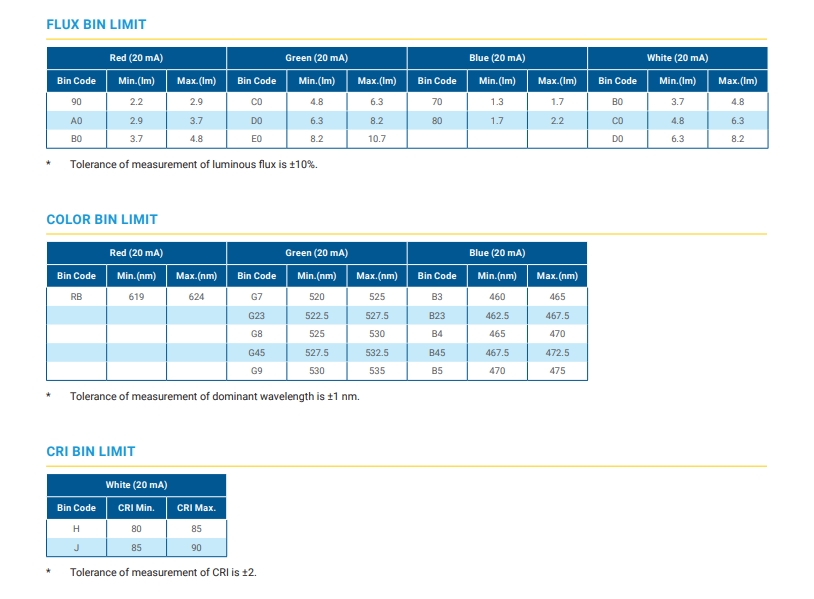

• Luminous Flux (lm)

Red (2.2 - 4.8)

Green (4.8 - 10.7)

Blue (1.3 - 2.2)

White (3.7 - 8.2)

• Moisture Sensitivity Level: 5a

• Lead-Free

• RoHS Compliant

APPLICATIONS

• Architecture Lighting

• Decorative Lighting

• Amusement

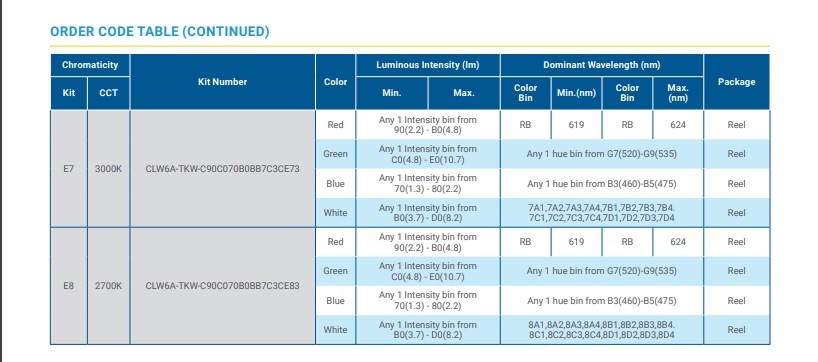

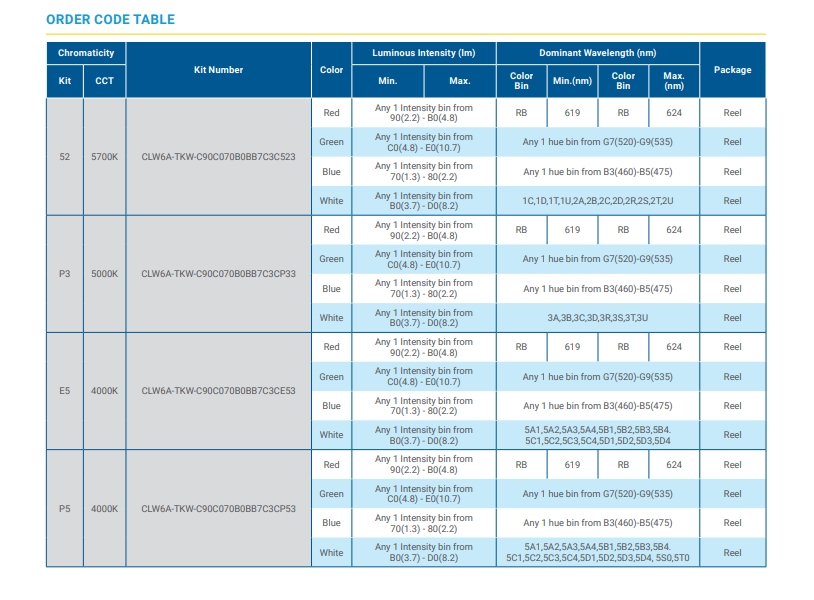

CLW6A-TKW-C90C070B0BB7C3C523

CLW6A-TKW-C90C070B0BB7C3CE53

CLW6A-TKWC90C070B0BB7C3CE73

 CLW6A-TKW-C90C070B0BB7C3CE83

 CLW6A-TKW-C90C070B0BB7C3CP33

CLW6ATKW-C90C070B0BB7C3CP53
